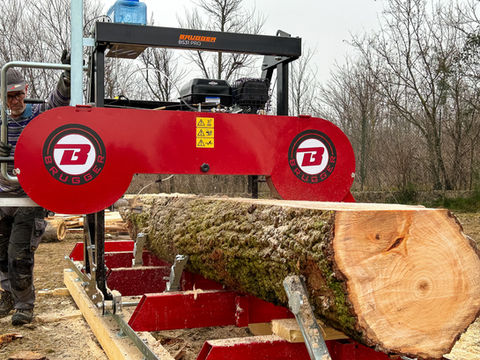

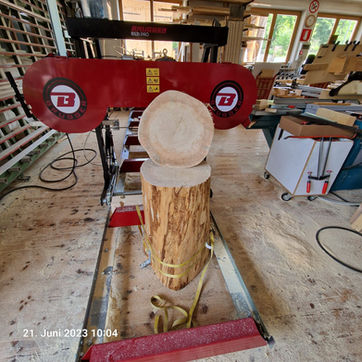

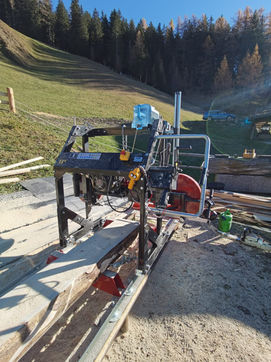

Brugger BS31 Sawmill
The Brugger BS31 band sawmill is a simple log band sawmill with which you can quickly and easily process logs of up to 76cm into construction timber.
The log band sawmill requires little technology and is therefore easy to operate and requires little maintenance.
Now the BS31 is also available in the Pro version with eclectic height adjustment, digital display, adjustable blade guide, and many other improvements that make the work easier.
The BS31 Pro log bandsaw is perfect for hobby sawyers, but also for more professional use and forest owners.
particularities
76cm trunk diameter
Trunk diameters of up to 76cm can be processed.
petrol or electric motor
You can choose between a 14hp petrol engine and a 7.5kW electric motor
Cutting length expandable
The maximum cutting length with the chassis is 5m, without the chassis this can be extended by 2m at a time.
PRO version
-Electric height adjustment
-Digital altitude display
- Adjustable knife guide
and much more
Technical specifications
Manufacturer:
bruggers
Model:
BS31
Engine:
Kohler
Perfomance:
14HP
Displacement:
420cc
engine speed:
4800 rpm
Fuel:
Petrol
feed:
Manual
trunk diameter:
760mm
Saw band stroke min:
25mm
Saw band stroke max:
760 mm
cutting depth:
178mm
Cutting length basic version min:
1000mm
Cutting length basic version:
2800mm
log circulation:
4 pieces
track size:
4000x1030mm
Saw band speed:
17m/min
impeller diameter:
480mm
impeller width:
25mm
Weight:
355 kg
