Brugger SA38
The Brugger firewood processor requires little technology and is therefore very easy to use and requires little maintenance.
With this firewood processor, logs with a diameter of 38 cm can be cut and split in one operation.
Sawing and splitting
The log clamp and chainsaw are operated manually via two hand levers.
Different drive types
The SA38 is offered with three different drive types.
• 14hp Kohler petrol engine
• 7.5kW 400V electric motor
• PTO drive
The version with electric or petrol engine can be combined with an additional PTO drive.
Automatic splitting process
After sawing, the splitting process starts automatically.
It can be split using a 4-way or 6-way splitting knife.
particularities
38cm max.
diameter
Log diameters of up to 38cm can be processed.
Petrol, electric motor or PTO drive
You can choose between a 14hp petrol engine, a 7.5kW electric motor or PTO drive.
12T
Splitting force
Thanks to 12T splitting pressure, even hard and dry wood is no problem.
Accesories
-infeed conveyor belt
-outfeed conveyor belt
-Additional PTO drive
Product Video
Technical data
Brand:
Model:
Engine:
Gasoline Perfomance:
Gasoline Displacement:
Gasoline Engine speed:
Fuel:
Elektric Motor:
Split cross:
Splitting force:
Max. log diameter:
Forward/reverse speed:
Sawbar:
Log length:
Chainsaw speed:
Feed table, 1.8 m:
outfeed conveyor belt, 3.2 m:
Weight approx.:
Brugger
SA38
Gasoline, Electric or PTO
14hp
420 cc
3800 rpm
petrol
7,5kW 400V
4, 6, way
12T
38cm
8 sec.
18 inches / 45 cm Oregon
15-50cm
4000 rpm
hydraulic (optional)
hydraulic (optional)
650kg
Accesories
6 - way splitting knife
(A 4-way splitting knife is included in delivery)
Infeed conveyor belt
100cm
Outfeed conveyor belt
320cm
Log lifter
Payload 500kg
Log deck
Payload 1,500kg

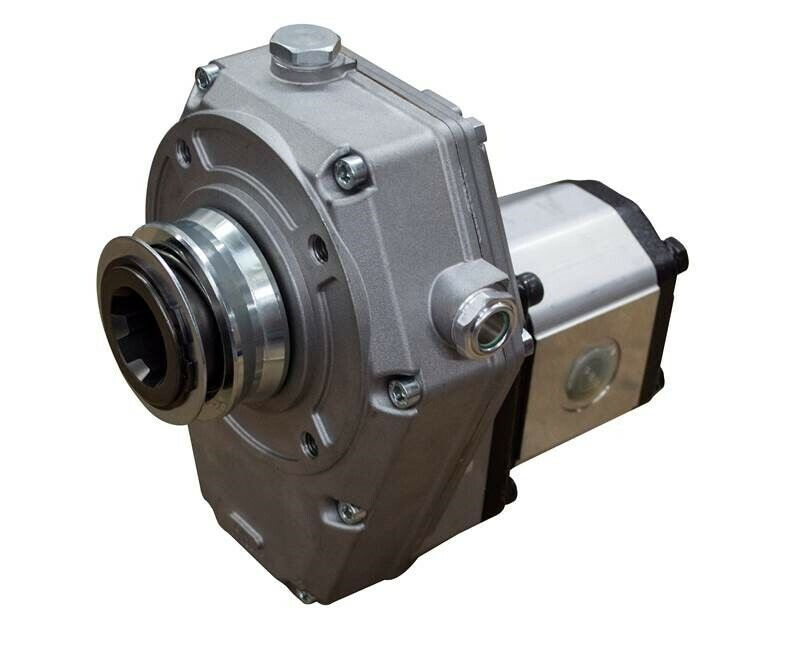

Additional PTO drive
(The petrol or electric version can be combined with a PTO drive)
Product Images
-
What is the price for the firewood processor, can it be delivered?Please contact us for a customized, non-binding offer. We deliver our machines throughout Europe.
-
How is the firewood processor delivered?In order to save our customers high shipping costs, the firewood processor is delivered partially assembled. This means that the complicated parts such as the engine, hydraulics, etc. are already assembled. Both conveyor belts, as well as the axle and cladding parts, still need to be attached. Detailed assembly instructions with pictures for each step are included with your order. With two people, the assembly takes about 5 hours.
-
Do I have a guarantee on the machine?Of course, as a private customer you receive a 2-year warranty on all machines and as a business customer you receive a 1-year warranty.
-
Can I inspect and test the machines?Please feel free to contact us, we are sure to have a customer or dealer in your area. Otherwise, the machine can also be tested directly at our company by appointment.
-
Where can I get spare parts?We have all spare parts in stock and these can be ordered quickly and easily via our website. The required parts will reach the customer within 3 working days. Care was taken to ensure that as many standard parts as possible were used in the machine. This means that many spare parts can also be purchased from local dealers.
-
Would you recommend a chain table or log lifter to make work easier?If a log lifter or chain conveyor is used, logs with a length of over 5 m can be processed (in the basic configuration a maximum log length of 2 m is possible). If you have a crane, loader, forklift or similar, we would recommend the chain conveyor. This allows multiple logs to be loaded at the same time, eliminating the need to lift each log individually. The log lifter and the chain conveyor cannot be used at the same time.
-
Is a combination of drive types possible?Yes, the version with a petrol engine or electric motor can be combined with a PTO drive.
-
What is included in the basic equipment?The basic equipment of the firewood processor includes: - Infeed conveyor belt - Pivoting ejection conveyor belt - 4-way splitting wedge - Firewood sieve
-
Which hydraulic oil is needed and how much?40l hlp 46 hydraulic oil is required.
-
Is the version with a pivot drive identical in construction?No, the PTO version has no chassis and is mounted directly on the three-point linkage. Furthermore, the PTO variant uses an intake chain instead of the conveyor belt.
